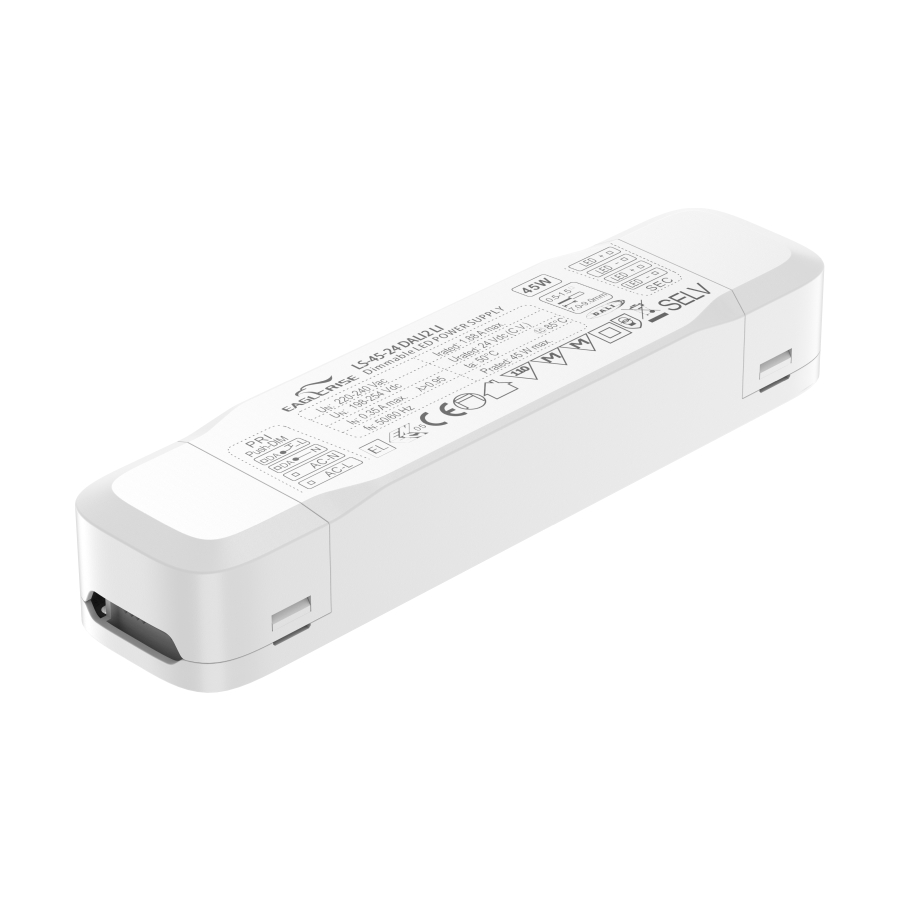

45W 24V DC 1.9A DALI LED Driver | Eaglerise LS-45-24 DALI2 LI

Specifications OUTPUT Voltage 24 VDC Current 1.88 A Power 45.0 W INPUT Voltage 176 ∼ 264 VAC / 176 ∼ 280 VDC Current 0.35 A (max) @ 198 VAC [Full Load] Frequency 0 / 50 / 60 Hz Efficiency Refer to Efficiency vs Load Curve Power Factor >0.95C @ 100% Load (refer to PF vs Load Curve) THD <25% CONNECTIONS Input Push terminals Output Push terminals DIMMING Dimming Method DALI-2 IEC 62386-101,102207 PUSH Corridor function Dimming Depth 1% Dimming Current Range 1~100% PWM Resolution 16 bit PROTECTIONS Over Load Protection 105 ~ 150% (with auto resume) Over Voltage  Protection 25.2 V (with auto resume) Short Circuit With auto resume Over Temperature With auto resume ENVIRONMENT Working Temperature Tc = -20 ~ 50°C Working Humidity 20 ~ 90% RH IP Rating IP20 DIMENSIONS L x W x H 187 x 45 x 31 mm [Overall] Weight N/A Carton Quantity N/A OTHER Class II Typical Lifetime >50,000 hours @ Tc = <75°C (refer to Life vs Temp Curve) Warranty 5 Years Approvals RCM (Australia) Unless specified, all tests were performed @ 25°C room temperature
