60W 24V DC 2.5A LED Driver | Eaglerise LS-60-24 LI EXC

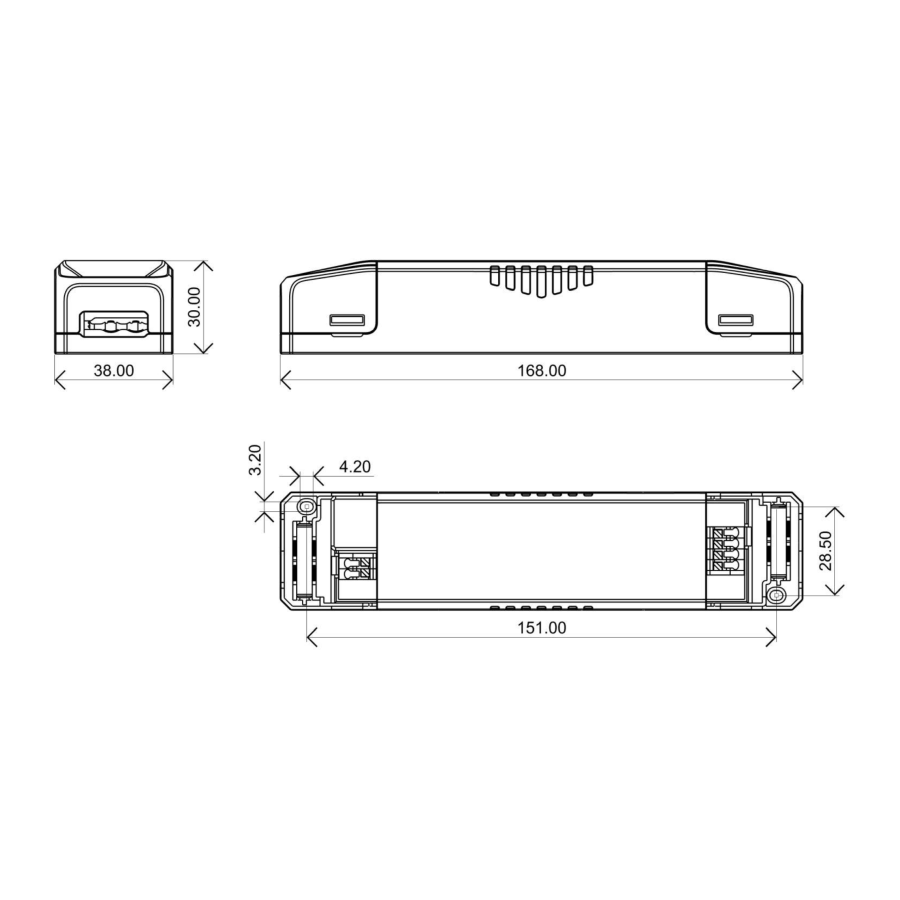

Specifications OUTPUT Voltage 24 VDC Current 2.5 A Power 60.0 W INPUT Voltage 198 ∼ 264 VAC / 176 ∼ 280 VDC Current 0.39 A (max) @ 198 VAC [Full Load] Frequency 0 / 50 / 60 Hz Efficiency Refer to Efficiency vs Load Curve Power Factor >0.95C @ 100% Load (refer to PF vs Load Curve) THD <10% CONNECTIONS Input Push Terminals  [0.5~1.5mm² / 16~20AWG] Output Push Terminals [0.5~1.5mm² / 16~20AWG] PROTECTIONS Over Load Protection 105 ~ 150% (with auto resume) Over Voltage  Protection 25.2 V (with auto resume) Short Circuit With auto resume Over Temperature With auto resume ENVIRONMENT Working Temperature Tc = -20 ~ 45°C Working Humidity 20 ~ 90% RH IP Rating IP20 DIMENSIONS L x W x H 168 x 38 x 30 mm [Overall] Weight N/A Carton Quantity N/A OTHER Class II Typical Lifetime >50,000 hours @ Tc = <75°C (refer to Life vs Temp Curve) Warranty 5 Years Approvals RCM (Australia) Unless specified, all tests were performed @ 25°C room temperature
