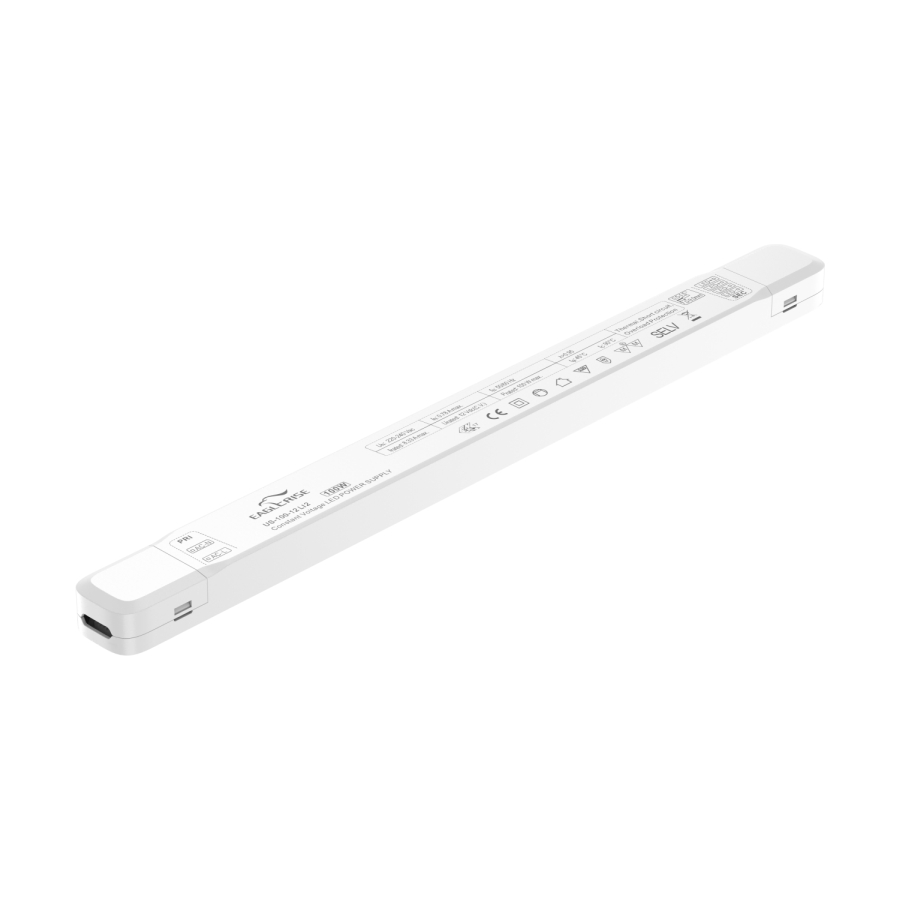

100W 12V DC 8.3A LED Driver | Eaglerise US-100-12 LI2

Specifications OUTPUT Voltage 12 VDC Current 8.3 A Power 100.0 W INPUT Voltage 198 ∼ 264 VAC / 198 ∼ 254 VDC Current 0.78 A (max) @ 198 VAC [Full Load] Frequency 0 / 50 / 60 Hz Efficiency Refer to Efficiency vs Load Curve Power Factor >0.95C @ 100% Load (refer to PF vs Load Curve) THD <15% CONNECTIONS Input Screw Terminals Output Screw Terminals PROTECTIONS Over Load Protection 105 ~ 150% (with auto resume) Over Voltage  Protection 12.6 V (with auto resume) Short Circuit With auto resume Over Temperature With auto resume ENVIRONMENT Working Temperature Tc = -20 ~ 45°C Working Humidity 20 ~ 90% RH IP Rating IP20 DIMENSIONS L x W x H 365 x 30 x 18 mm [Overall] Weight N/A Carton Quantity N/A OTHER Class II Typical Lifetime >50,000 hours @ Tc = <75°C (refer to Life vs Temp Curve) Warranty 5 Years Approvals RCM (Australia) Unless specified, all tests were performed @ 25°C room temperature
