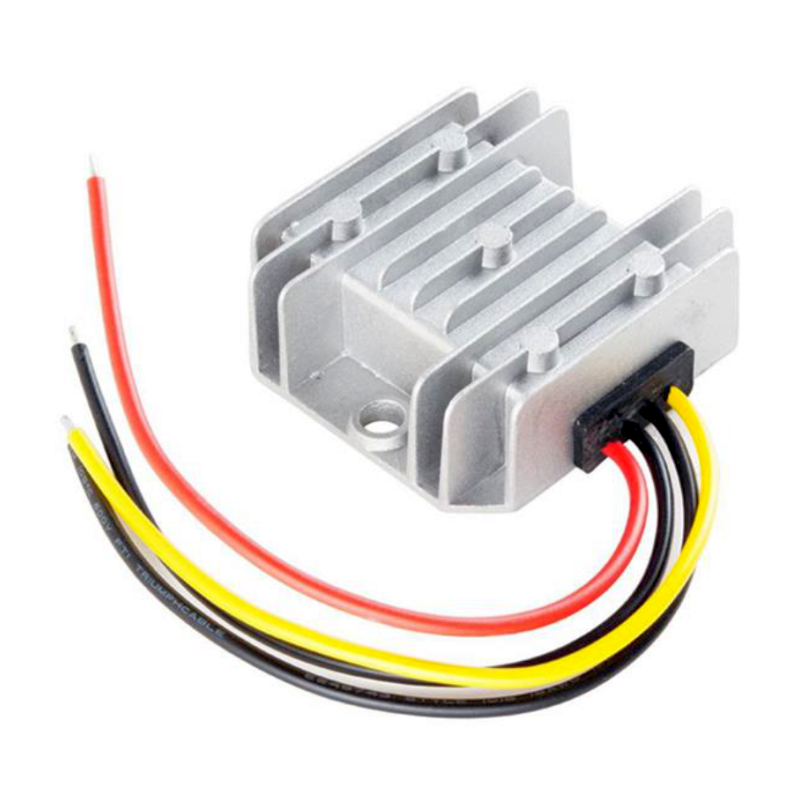

8∼40V ⇒ 12V 3A 36W DC-DC Converter IP68

This WG8-40S1203 is a non isolated DC-DC buck boost converter that uses synchronous rectification technology, and features high efficiency and power density. Ideally used in the automotive and marine industry to convert a variable supply voltage of 8~40 VDC with a regulated 12 VDC output up to 3A (36W). With a environmental protection rating of IP68 and small case size this DC-DC converter can be mounted virtually anywhere. High efficiency: 89.1 % 12Vin, 25°C Input transient absorption protection Wide operating ambient temperature: -40 ~ 50°C Short circuit, over load, low voltage protections Conduction, convection and radiation cooling (no fan) Waterproof IP68 protection Dimensions: 64 x 57 x 22mm 2 Year warranty
