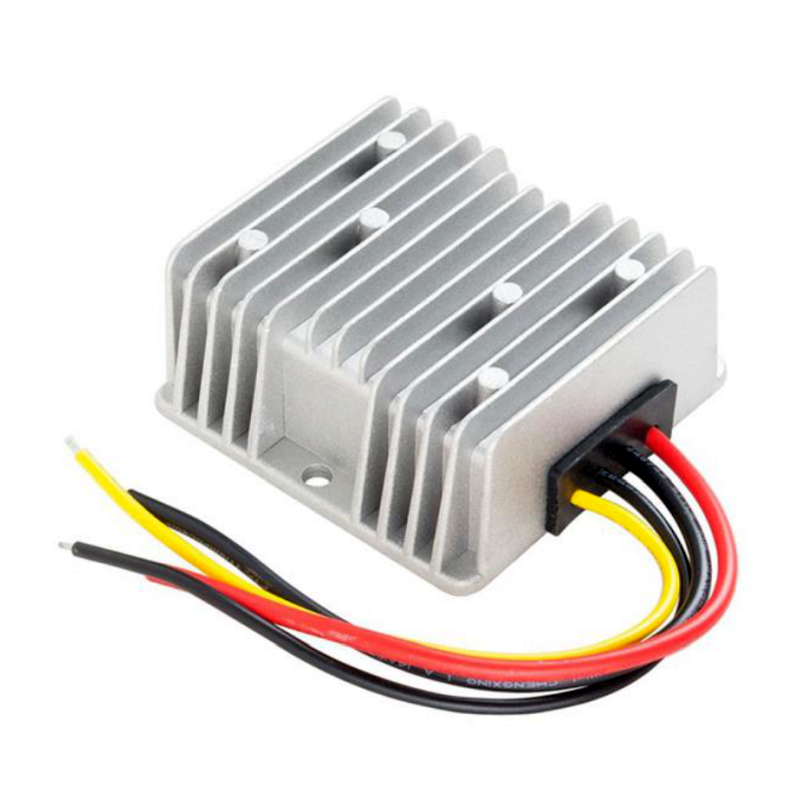

9∼40V ⇒ 24V 6A 150W DC-DC Converter IP68

This WG9-40S2406 is a non isolated DC-DC buck boost converter that uses synchronous rectification technology, and features high efficiency and power density. Ideally used in the automotive and marine industry to convert a variable supply voltage of 9~40 VDC with a regulated 24 VDC output up to 6A (150W). With a environmental protection rating of IP68 and small case size this DC-DC converter can be mounted virtually anywhere. High efficiency: 92.7 % 24Vin, 25°C Input transient absorption protection Wide operating ambient temperature: -40 ~ 50°C Short circuit, over load, low voltage protections Conduction, convection and radiation cooling (no fan) Waterproof IP68 protection Dimensions: 74 x 74 x 32mm 2 Year warranty
