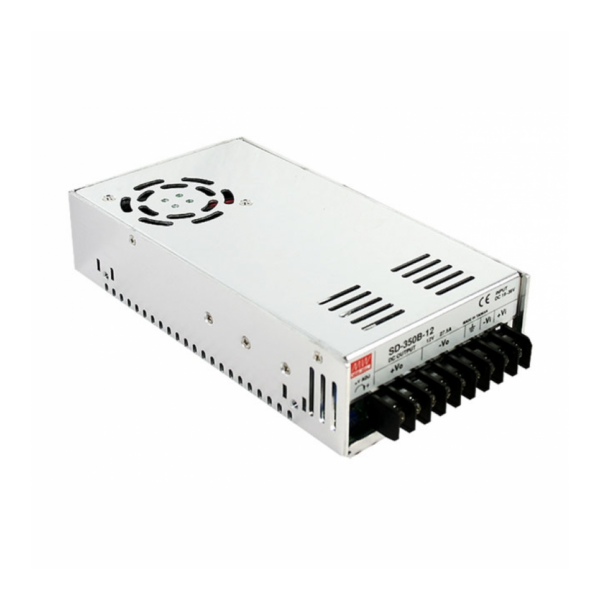

Mean Well SD-350C-12 | 36∼72V ⇒ 12V 27.5A

Specifications Output Voltage 12 VDC Current 27.5 A Power 350 W Adjustable Voltage Range 11.0 ∼ 16.0 VDC Input Voltage 36 ∼ 72 VDC Current 8.8 A @ 48 VDC Efficiency 81% Connections Input Screw Terminals Output Screw Terminals Protections Overload 105 ~ 135% rated output power Over Voltage 16.8 ~ 20V Environment Working Temp. -20 ~ 60°C (refer datasheet for derating) Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 215 x 115 x 50 mm Weight 1.1 kg Carton Quantity 12 pieces / 14.4 kg Other Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Typical Lifetime 209.4K hrs min Warranty 2 Years
