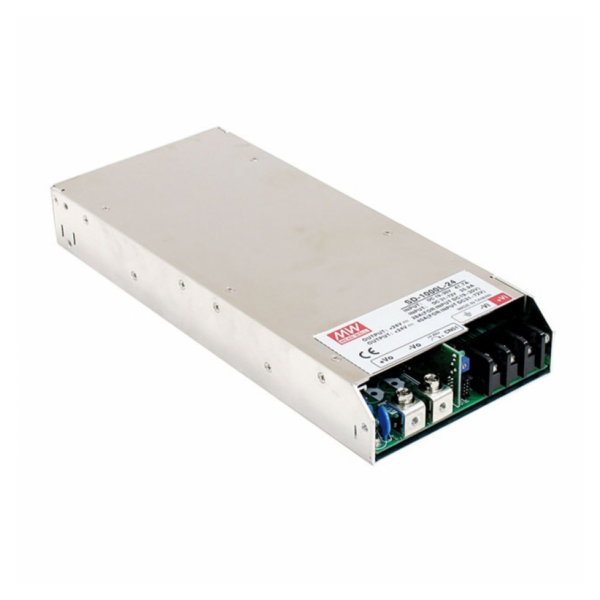

Mean Well SD-1000L-24 | 19∼72V ⇒ 24V 40A

Specifications Output Voltage 24 VDC Current 40 A Power 1000 W Adjustable Voltage Range 23.0 ∼ 30.0 VDC Input Voltage 19 ∼ 72 VDC Current 23.5 A @ 48 VDC Efficiency 88% Connections Input Screw Terminals Output Screw Terminals Protections Overload 105 ~ 125% rated output power Over Voltage 30.8 ~ 35.2V Environment Working Temp. -20 ~ 60°C (refer datasheet for derating) Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 295 x 127 x 41 mm Weight 1.94 kg Carton Quantity 6 pieces / 12.6 kg Other Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Typical Lifetime 106.7K hrs min Warranty 3 Years
