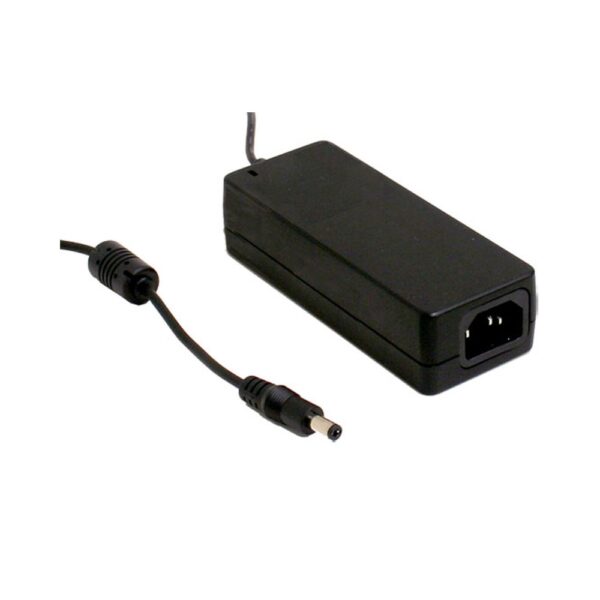

Mean Well GST60A24-P1J | 24V 2.5A Adaptor

Specifications Output Voltage 24 VDC Current 2.5 A Power 60 W Input Voltage 90 ∼ 264 VAC / 135 ∼ 370 VDC Current 1.0 A @ 230 VAC Inrush Current 65 A @ 230 VAC (twidth=350µs @ 50% lpeak) Efficiency 90.5% Connections Input IEC Lead Output DC Socket ID:2.1mm OD:5.5mm Protections Short Circuit Recovers once fault removed Over Voltage 25.2 ~ 32.4 VDC | Re-power to recover Overload 105 ~ 150% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 125 x 50 x 31.5 mm Weight 0.280 kg Carton Quantity 40 pieces / 13.02 kg Other MTBF 709.7K HRS MIN Warranty 3 Years Approvals RCM (Australia)
