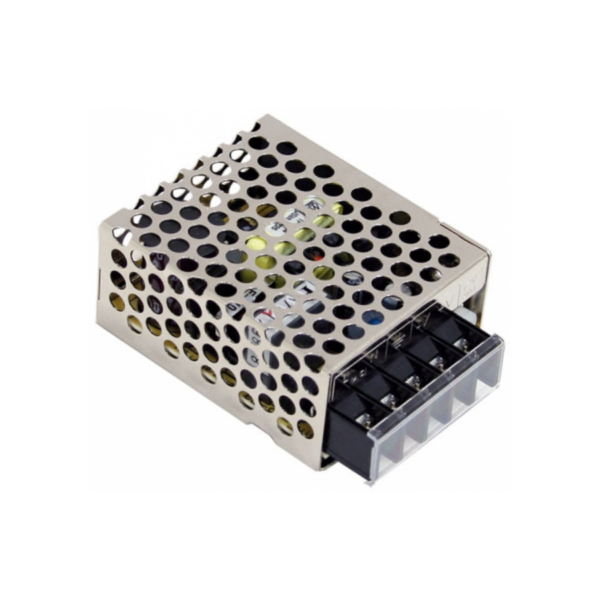

Mean Well RS-15-12 | 12VDC 1.3A Enclosed Power Supply

$ 15.01

+ Free Shipping To USA
Specifications Output Voltage 12 VDC Current 1.3 A Power 15 W Adj Voltage Range 10.8 ∼ 13.2 VDC LED Indicator Yes Input Voltage 85 ∼ 264 VAC / 120 ∼ 370 VDC Current 0.25 A @ 230 VAC Inrush Current 65 A Efficiency 81% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 13.8 ∼ 16.2 VDC | Re-power to recover Overload 105% rated output | Recovers once fault removed Environment Working Temp. Tcase= -20 ~ 70°C (refer datasheet for derating) Cooling Method Convection Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 63 x 51 x 28 mm Weight 0.130 kg Carton Quantity 108 pieces / 15 kg Other MTBF 1608.8K HRS MIN Warranty 3 Years Approvals RCM (Australia)
