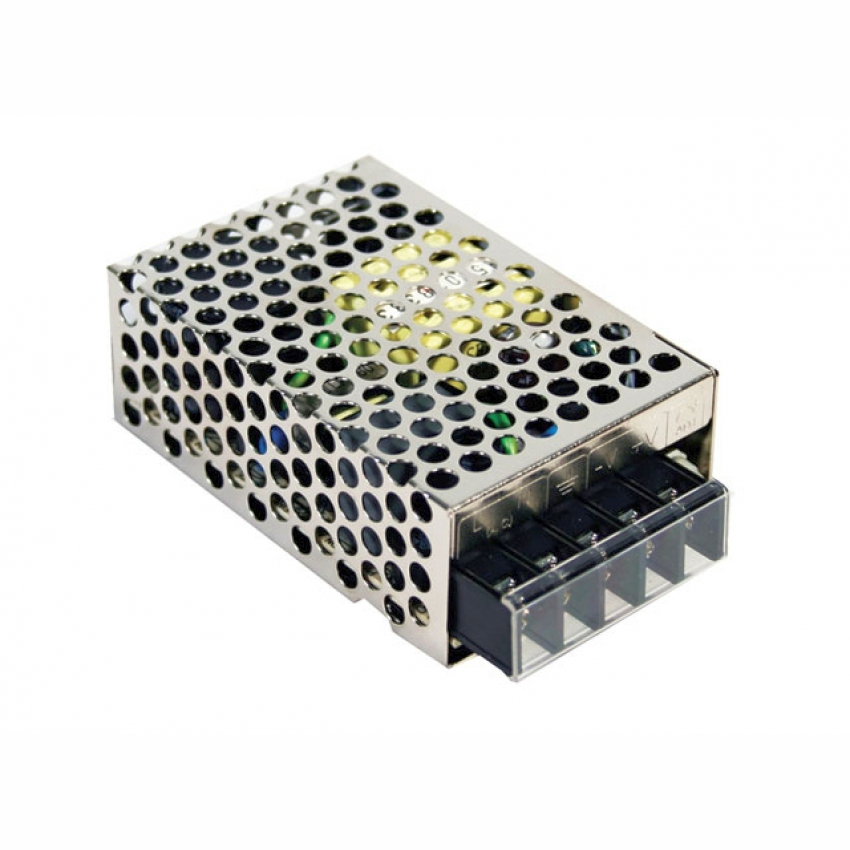

Mean Well RS-25-5 | 5VDC 5A Enclosed Power Supply

Specifications Output Voltage 5 VDC Current 5 A Power 25 W Adj Voltage Range 4.75 ∼ 5.5 VDC LED Indicator Yes Input Voltage 88 ∼ 264 VAC / 125 ∼ 373 VDC Current 0.4 A @ 230 VAC Inrush Current 45 A Efficiency 78.5% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 5.75 ∼ 6.75 VDC | Re-power to recover Overload 110 ∼ 180% rated output | Recovers once fault removed Environment Working Temp. Tcase= -20 ~ 70°C (refer datasheet for derating) Cooling Method Convection Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 78 x 51 x 28 mm Weight 0.200 kg Carton Quantity 60 pieces / 13 kg Other MTBF 309.7K HRS MIN Warranty 3 Years Approvals RCM (Australia)
