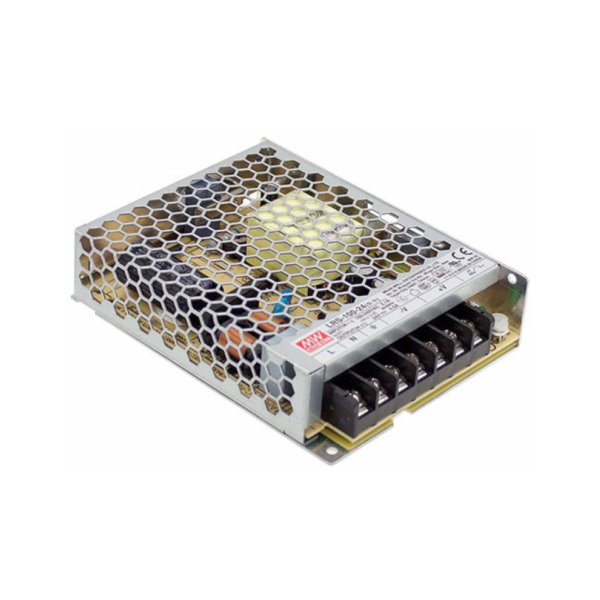

Mean Well LRS-100-12 | 12VDC 8.5A Enclosed Power Supply

Specifications Output Voltage 12 VDC Current 8.5 A Power 100 W Adj Voltage Range 10.2 ∼ 13.8 VDC LED Indicator Yes Input Voltage 85 ∼ 264 VAC / 120 ∼ 373 VDC Current 1.2 A @ 230 VAC Inrush Current 50 A Efficiency 88% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 13.8 ∼ 16.2 VDC | Re-power to recover Overload 110 ∼ 150% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Cooling Method Convection Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 129 x 97 x 30 mm Weight 0.340 kg Carton Quantity 40 pieces / 14.6 kg Other MTBF 720.6K HRS MIN Warranty 3 Years Approvals RCM (Australia)
