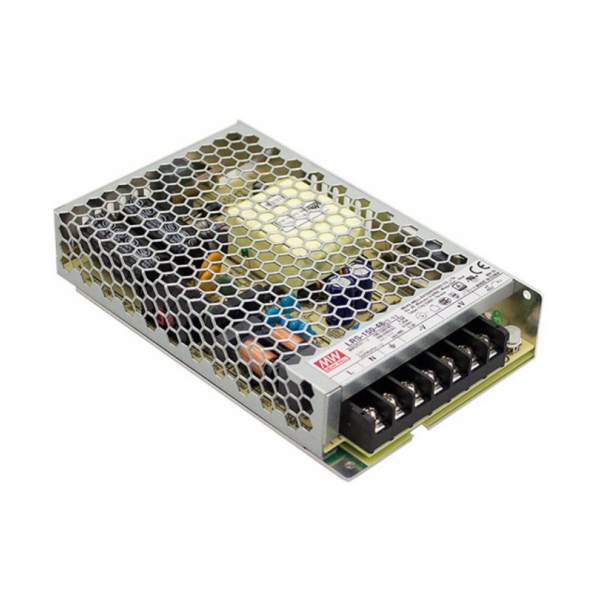

Mean Well LRS-150-24 | 24VDC 6.5A Enclosed Power Supply

Specifications Output Voltage 24 VDC Current 6.5 A Power 150 W Adj Voltage Range 21.6 ∼ 28.8 VDC LED Indicator Yes Input Voltage 85 ∼ 132 | 170 ∼ 264 VAC / 240 ∼ 370 VDC Via switch Current 1.7 A @ 230 VAC Inrush Current 60 A Efficiency 89% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 28.8 ∼ 33.6 VDC | Re-power to recover Overload 110 ∼ 140% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Cooling Method Convection Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 159 x 97 x 30 mm Weight 0.480 kg Carton Quantity 30 pieces / 15.4 kg Other MTBF 601K HRS MIN Warranty 3 Years Approvals RCM (Australia)
