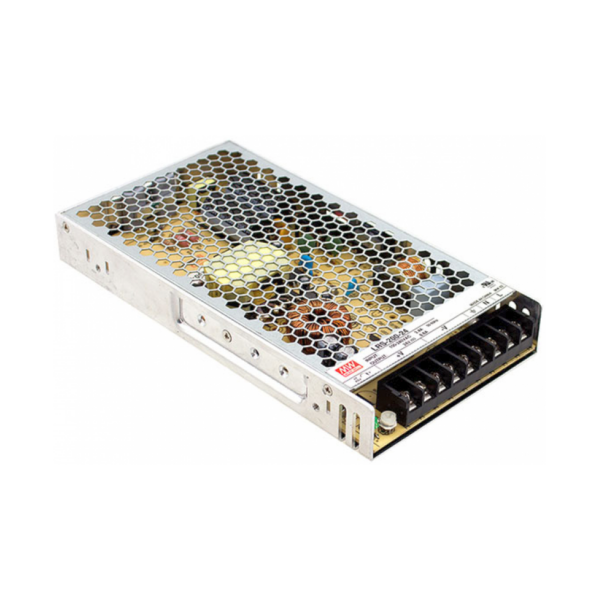

Mean Well LRS-200-12 | 12VDC 17A Enclosed Power Supply

Specifications Output Voltage 12 VDC Current 17 A Power 200 W Adj Voltage Range 10.2 ∼ 13.8 VDC LED Indicator Yes Input Voltage 90 ∼ 132 | 180∼ 264 VAC / 240 ∼ 370 VDC Via switch Current 2.2 A @ 230 VAC Inrush Current 60 A Efficiency 87.5% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 13.8 ∼ 16.2 VDC | Re-power to recover Overload 110 ∼ 140% rated output | Recovers once fault removed Environment Working Temp. Tcase= -25 ~ 70°C (refer datasheet for derating) Cooling Method Convection Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 215 x 115 x 30 mm Weight 0.660 kg Carton Quantity 15 pieces / 10.9 kg Other MTBF 347.5K HRS MIN Warranty 3 Years Approvals RCM (Australia)
