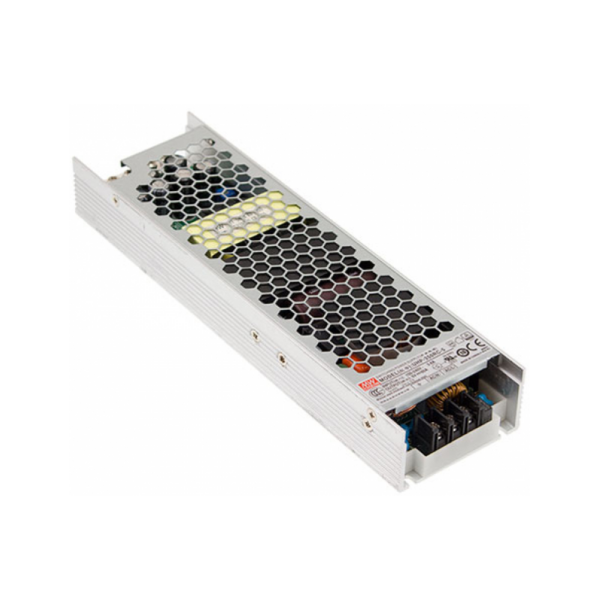

Mean Well UHP-350R-12 | 12VDC 29A Enclosed Power Supply

Specifications Output Voltage 12 VDC Current 29.2 A Power 350 W Adj Voltage Range 11.4 ~ 12.6 VDC LED Indicator Yes Input Voltage 90 ∼ 264 VAC / 127 ∼ 370 VDC Current 2 A @ 230 VAC Inrush Current 60 A Efficiency 91% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 5.75 ∼ 6.75 VDC | Re-power to recover Overload 110 ∼ 140% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Cooling Method Convection & conduction Working Humidity 20 ~ 95% RH non-condensing IP Rating IP20 Dimensions L x W x H 220 x 62 x 31 mm Weight 0.680 kg Carton Quantity 16 pieces / 11.88 kg Other MTBF 285K HRS MIN Warranty 3 Years Approvals RCM (Australia)
