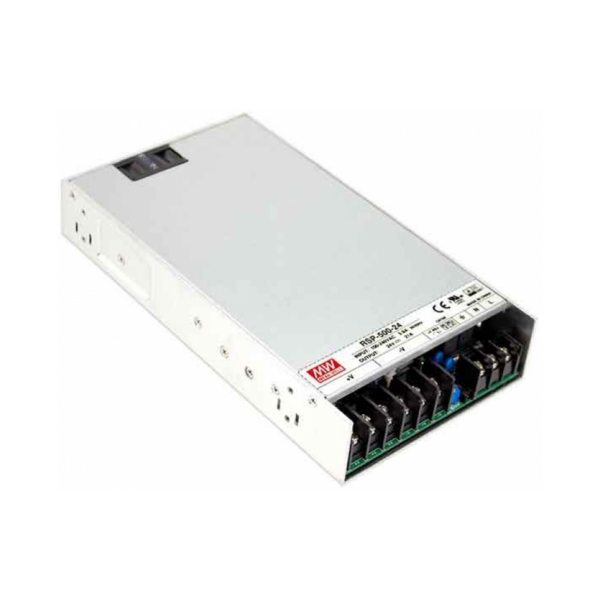

Mean Well RSP-500-24 | 24VDC 21A Enclosed Power Supply

Specifications Output Voltage 24 VDC Current 21 A Power 500W Adj Voltage Range 20 ∼ 26.4 VDC LED Indicator Yes Input Voltage 85 ∼ 264 VAC / 120 ∼ 370 VDC Current 2.65 A @ 230 VAC Inrush Current 40 A Efficiency 89% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 27.6 ∼ 32.4 VDC | Re-power to recover Overload 105 ∼ 130% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Cooling Method Variable speed fan Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 230 x 127 x 41 mm Weight 1.300 kg Carton Quantity 9 pieces / 12.7 kg Other MTBF 187.7K HRS MIN Warranty 3 Years Approvals RCM (Australia)
