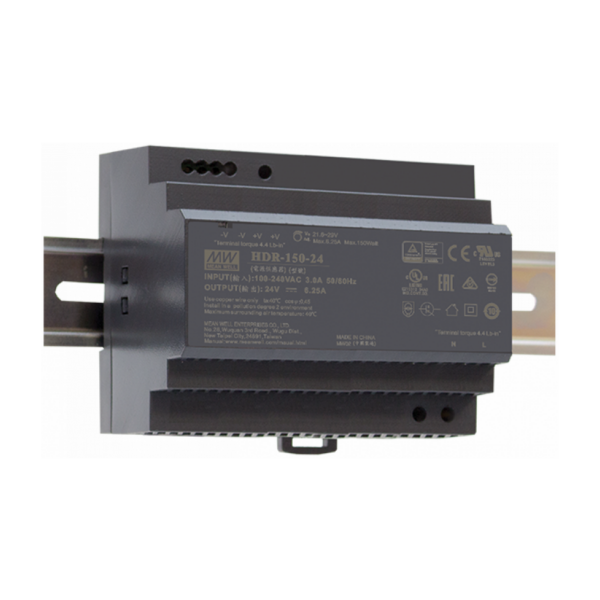

Mean Well HDR-150-24 | 24VDC 6.25A DIN Rail Power Supply

Specifications Output Voltage 24 VDC Current 6.25 A Power 150 W Adj Voltage Range 21.6 ∼ 29 VDC Input Voltage 85 ∼ 264 VAC / 120 ∼ 370 VDC Current 1.6 A @ 230 VAC Inrush Current 70 A @ 230 VAC Efficiency 90.5% Connections Input Screw terminals Output Screw terminals Protections Over Voltage 30 ∼ 36 VDC | Re-power to recover Overload 105 ~ 135% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Working Humidity 20 ~ 90% RH non-condensing IP Rating IP20 Dimensions L x W x H 105 x 90 x 54.5 mm Weight 0.310 kg Carton Quantity 32 pieces / 11 kg Other DIN Rail TS35/7.5 or TS35/15 MTBF 536K HRS MIN Warranty 3 Years Approvals RCM (Australia)
