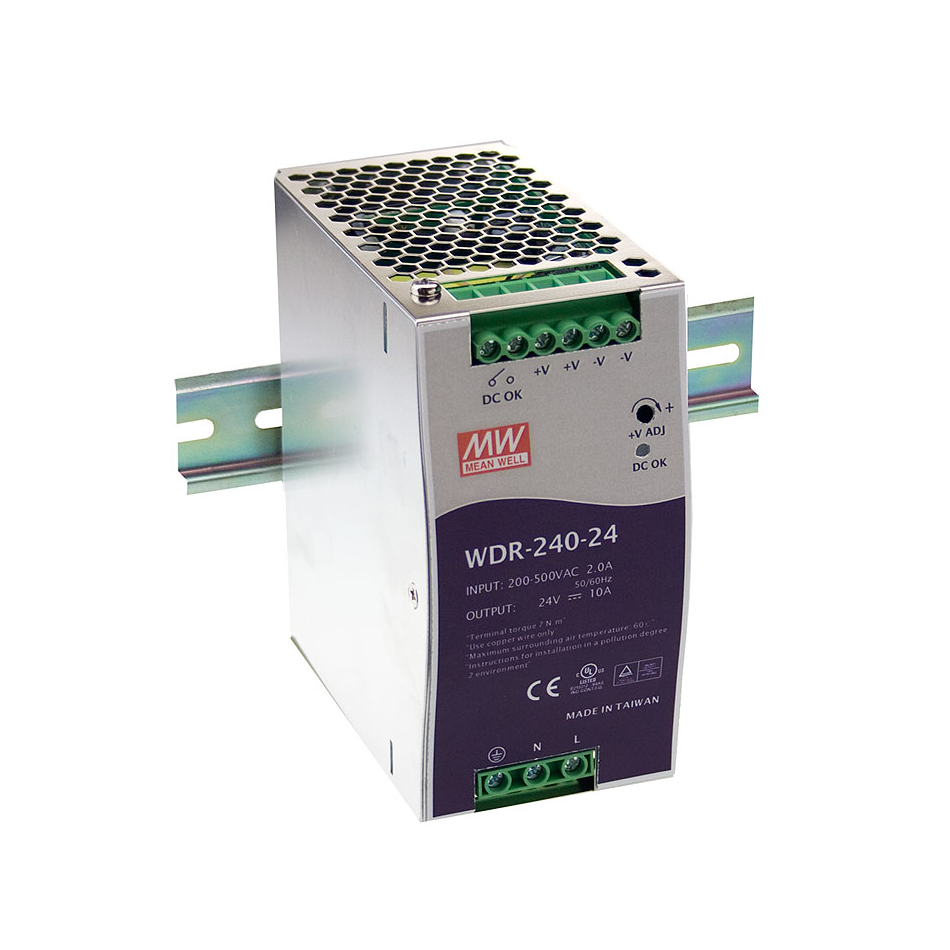

Mean Well WDR-240-24 | 24VDC 10A DIN Rail Power Supply

Specifications Output Voltage 24 VDC Current 10 A Power 240 W Adj Voltage Range 24 ∼ 28 VDC Input Voltage 180 ∼ 550 VAC / 254 ∼ 780 VDC Current 2 A @ 230 VAC Inrush Current 50 A Efficiency 91% @ 400 VAC Connections Input Screw terminals Output Screw terminals Protections Over Voltage 29 ∼ 33 VDC | Re-power to recover Overload 105 ~ 130% rated output | Recovers once fault removed Environment Working Temp. Tcase= -30 ~ 70°C (refer datasheet for derating) Working Humidity 20 ~ 95% RH non-condensing IP Rating IP20 Dimensions W x H x D 63 x 125 x 114 mm Weight 1.06 kg Carton Quantity 12 pieces / 13.7 kg Other DIN Rail TS35/7.5 or TS35/15 MTBF 141.1K HRS MIN Warranty 3 Years Approvals RCM (Australia)
